Products
FEATURES

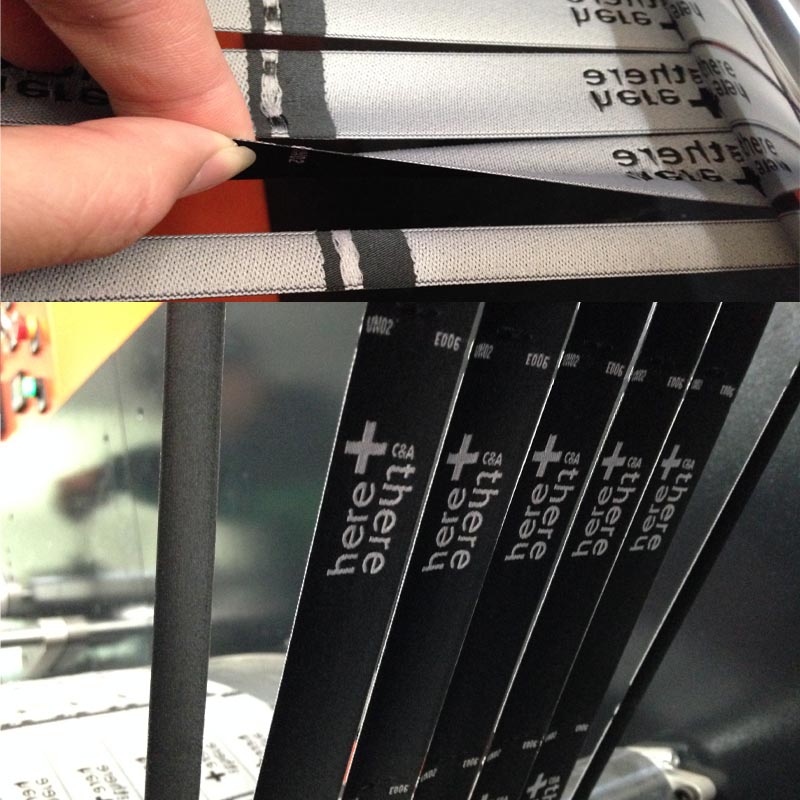

1. Edge sensor control system keeps the slitting label precision
2. Non-material auto. stops
3. With origintal German ultrasonic cutting unit ,no need pre-heating
4. Equipped with wasted fabric collecting device
5. Taiwan imported steel horn , long life
6. Slitting speed adjustable according to material conditions
7. German imported pneumatic cylinder ,Italia imported position system and tension controller
SPECIFICATIONS
Name: ultrasonic slitting machine
Model:BDS-052S
Voltage:220V,50/60HZ
Frequency:20KHz
Max. Slitting Width:265MM
The Max. dia of roller:300MM
The Max dia of unwinding:300MM
Cutting speed:Max.30 M/min
Power:2000W
Dimensions: 2600 X 1100 X 1600 mm
Weight:300KG
