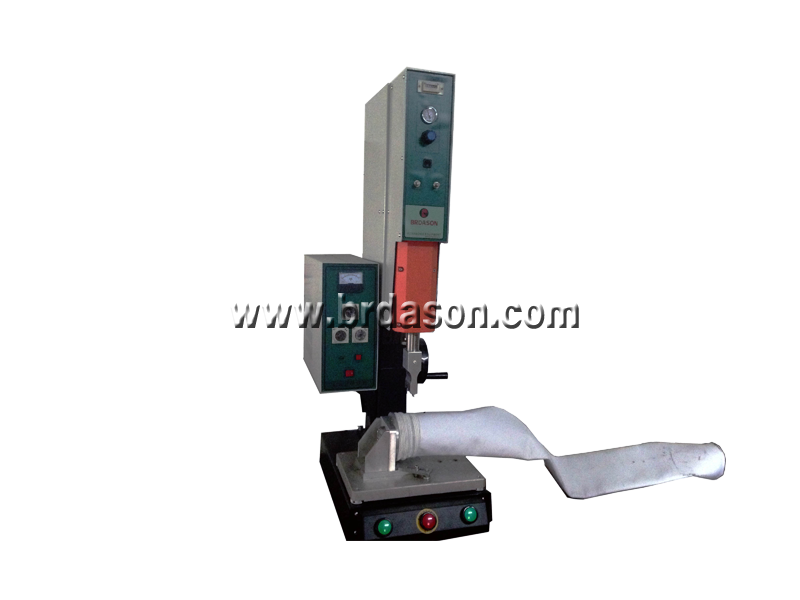

20KHz PP Non-woven Bag Ultrasonic Welding Machine
The PP non-woven bag usually used for dust collector or liquid collect
FEATURES
1. With the USA imported piezoelectric ceramic transducer, the output power is more strong and life is longer
2. Special steel booster ,it's solid mount ,life is long
3. Four corner points Levelling adjustable. it's more easy
4. the ultrasonics is average and stable
5. Especially suitable for small and middle objects and waterproof precision plastic products welding.
6. Imported Aluminium 7075 material on horn ,titanium and steel horn optional
7.CE approved
8. With square column to support the machine body , it's stable and no shaking when running
9.Trigger force power is more stronger than Taiwan circuit
10. We can according to your requirement to design the automatic machine with your production line
SPECIFICATION
Model | BS006 | BS006 | BS006 | BS006 |
BS006
|
Frequency | 20KHZ | 20KHz | 20KHZ | 20KHZ | 20KHZ |
Output Power | 1,200W | 1500W | 1800W | 2,000W | 2600W |
Welding Capability | 100 m/m φ | 150 m/m φ | 170 m/m φ | 190 m/m φ | 200 m/m φ |
Dimension (MM) | 680X400X1200 | 680X400X1200 | 680X400X1200 | 680X400X1200 | 680X400X1200 |
Net Weight | 100 kg | 115 kg | 120 kg | 120 kg | 120 kg |
Line Source | 220V 1P | 220V 1P | 220V 1P | 220V 1P | 220V 1P |
